FRP Grating

/Fiberglass walkway for commercial solar installations
Non-slip walkway for solar panel installations
Non-slip walkway for solar panel installations
Non-slip walkway for solar panel installations
Non-slip walkway for solar panel installations

Fiberglass walkway for commercial solar installations

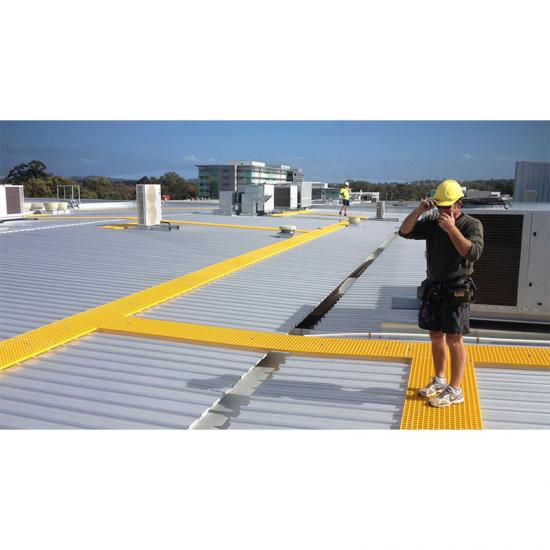

The solar installation roof walkway grating is designed to support technicians and maintenance teams who need to access solar panels safely without damaging the infrastructure. With a non-slip surface and modular installation options, it offers a reliable solution for solar installation sites, especially those with large, expansive rooftop solar arrays or solar farm systems.



  • Material:

    FRP
  • Application:

    Rooftop
  • Color:

    Yellow, Green, Gray, Blue ......
  • Width:

    300mm/400mm/450mm /anyother size
  • Height:

    20/25/30......
  • Length:

    As per your request

.Overview

The Fiberglass Walkway for Commercial Solar Installations is a high-performance solution designed to provide safe and durable access across rooftops or solar farms where solar panels are installed. Made from reinforced fiberglass, this walkway system ensures both durability and safety, even in harsh environmental conditions. Its lightweight and corrosion-resistant properties make it an ideal choice for long-term use in solar panel maintenance and other commercial solar applications.



.FRP walkway Specification:



Legend

Specification

(mm)

Mesh Size

(mm)

Thickness

(mm)

Bar Thickness

(mm)

Full Panel Size

(mm)

Weight

(kg/)



Open Rate

(%)

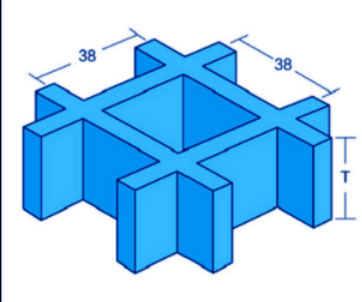

Grating for solar walkway 38*38*15 38*38 15 6.0/5.0

1220*3660

1260*3660

7.0 75
38*38*25 38*38 25 6.5/5.0

1220*3660

1220*2440

12.3 68
38*38*30 38*38 30 6.5/5.0

1220*3660

1220*4040

14.6 68
38*38*38 38*38 38 7.0/5.0

1220*3660

1000*4040

19.5 65

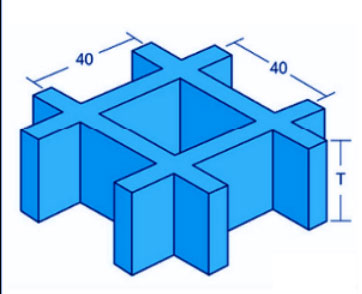

FRP walkway grating for solar roof panels 40*40*25 40*40 25 7.0/5.0

1007*3007

12.3 67
40*40*30 40*40 30 7.0/5.0

1007*3007

14.6 67
40*40*40 40*40 40 7.0/5.0

1247*3687

1007*3007

19.5 67
FRP walkway grating for solar roof panels 50*50*15 50*50 15 6.0/5.0

1220*3660

1220*2440

6 82
50*50*25 50*50 25 7.0/5.0

1220*3660

1220*2440

11 78
50*50*50 50*50 50 7.5/5.0

1220*3660

1220*2440

22.5 75
FRP walkway grating for solar roof panels 19*19*25

19*19

38*38

25 6.5/5.0

1220*3660

1220*2440

16.8 30
19*19*30

19*19

38*38

30 6.5/5.0

1220*3660

1220*2440

19.1 30
19*19*38

19*19

38*38

38 6.5/5.0

1220*3660

1220*2440

24 30

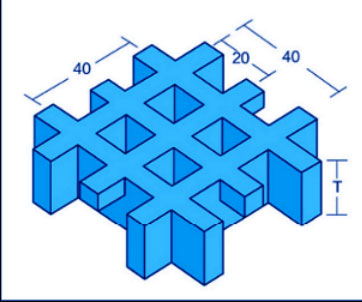

FRP walkway grating for solar roof panels 20*20*30

20*20

40*40

30 7.0/5.0

1007*3007

18.3 30
20*20*38

20*20

40*40

38 7.0/5.0

1247*3687

1007*3007

22.8 42
20*20*40

20*20

40*40

40 7.0/5.0

1007*3007

23.7 42





.Key Features



  • Fiberglass safety grating for solar farm pathways

    Durable and Lightweight: The fiberglass material is not only strong and capable of handling heavy foot traffic, but it is also lightweight, making it easy to transport and install.

  • Fiberglass safety grating for solar farm pathways

    Non-Slip Surface: The walkway features an anti-slip surface to ensure safety for workers even under wet or snowy conditions, reducing the risk of accidents on rooftops or solar farm pathways.

  • Fiberglass safety grating for solar farm pathways

    Corrosion-Resistant: Unlike metal walkways that can corrode over time, fiberglass is highly resistant to weathering, corrosion, and chemical degradation, making it a cost-effective long-term investment for solar installations.

  • Fiberglass safety grating for solar farm pathways

    Modular Design: The fiberglass walkway system is easy to assemble and install with modular sections, ensuring quick setup and customization based on the layout of the solar array.

  • Fiberglass safety grating for solar farm pathways

    Maintenance-Friendly: The walkway is designed to provide easy access to solar panels and equipment, making routine maintenance more efficient. The structure also minimizes the chances of panel or roof damage during service.

  • Fiberglass safety grating for solar farm pathways

    UV-Resistant: UV-resistant coatings prevent the fiberglass walkway from degrading under constant exposure to sunlight, ensuring long-lasting durability in outdoor conditions.

  •

.Applications

Commercial Solar Installations:

Ideal for rooftops with large-scale commercial solar panel systems, the fiberglass walkway provides safe access for technicians and maintenance crews to service panels.

Solar Farms:

In expansive solar farms, these walkways help maintain safe paths for workers and reduce the risk of accidents while accessing solar modules spread across large areas.

Roof-Top Solar Maintenance:

For maintenance teams working on residential or commercial rooftops, fiberglass walkways provide stable, secure paths to walk on without disturbing the delicate solar panels.

Industrial Solar Projects:

In industrial-scale solar power plants, fiberglass walkways provide durable and low-maintenance access, ideal for periodic cleaning and inspection.





.Request for Quote (RFQ):

To request a custom quote or learn more about the FRP Walkway Grating for Roof Solar Panels, please provide the following details:

1. Roof Type: What type of roofing system do you have? (e.g., flat, pitched, metal, etc.)

2. Solar Panel System Type: What kind of solar panel system are you using? (e.g., residential, commercial, hybrid systems)

3. Dimensions of Required Walkway: Please provide the approximate dimensions for the walkway.

4. Quantity: How many square meters of FRP walkway grating do you need?

5. Project Timeline: What is the expected project start date and installation timeframe?

6. Additional Requirements: Any custom design features, special load-bearing capacity, or unique specifications?

Our team will analyze your requirements and provide you with a tailored quote based on your needs.





.FAQ



  • Q: What is the weight capacity of the fiberglass walkway?

    A: The weight capacity typically depends on the specific model, but it is designed to withstand the weight of multiple technicians and equipment, with load-bearing capacities ranging from 200 to 400 pounds per square foot. Always check the product specifications for your specific needs.

  • Q: Can the fiberglass walkway be used in all weather conditions?
     A: Yes, the fiberglass walkway is UV-resistant and weatherproof, making it suitable for use in hot, cold, and wet conditions, including snow and rain.



  • Q: Is the installation process difficult?
    A: No, the modular design allows for easy installation with no specialized tools required. It can be assembled quickly and adjusted to fit your solar installation.



  • Q: How long does the fiberglass walkway last?
    A: With proper maintenance, fiberglass walkways are highly durable and can last for many years without degradation due to corrosion, UV exposure, or weather conditions.



  • Q: Can the walkway be moved if needed?
    A: Yes, the modular design allows for easy removal and relocation, offering flexibility if your solar panel layout changes or if you need to adjust your installation over time.
