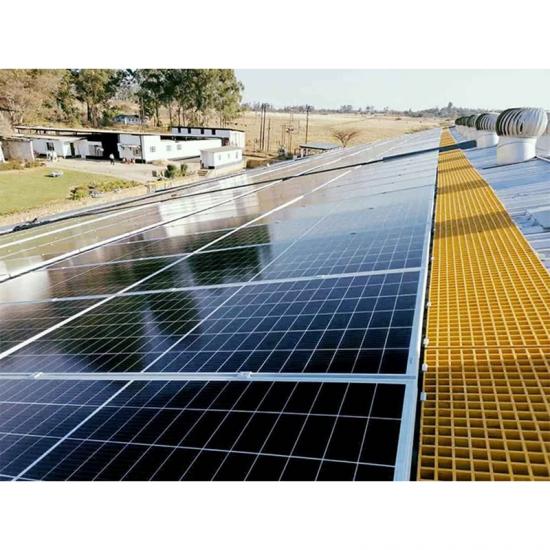

This FRP walkway grating is the perfect addition to ensure both the safety of workers and the long-term performance of your solar panel systems. It allows technicians to easily access and maintain solar panels without the risk of slipping, ensuring the system’s optimal performance for years to come.
Material:
FRPApplication:
RooftopColor:
Yellow, Green, Gray, Blue ......Width:
300mm/400mm/450mm /anyother sizeHeight:
20/25/30......Length:
As per your request.Overview

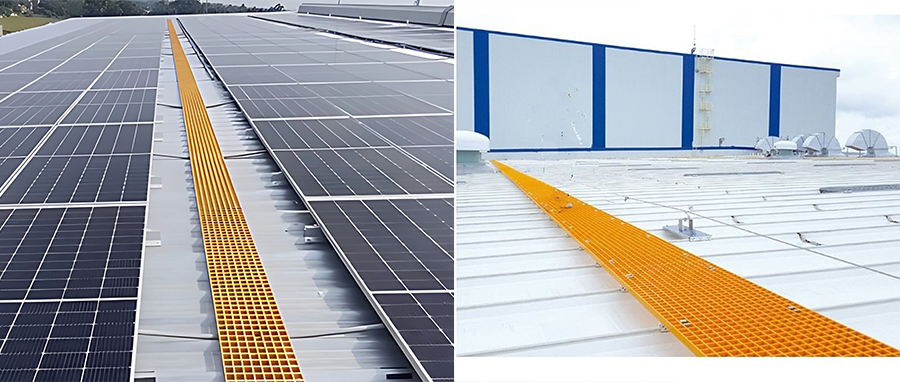

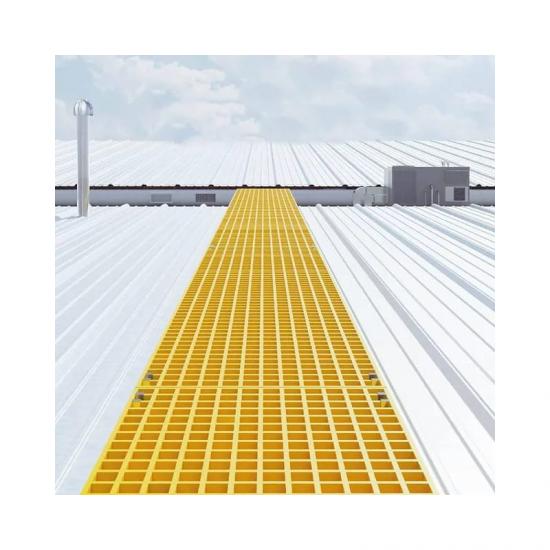

FRP Walkway Grating for Roof Solar Panels is designed to provide a safe, durable, and easy-to-maintain solution for accessing solar panels installed on rooftops. Made from high-quality Fiberglass Reinforced Plastic (FRP), these walkways are engineered to withstand harsh environmental conditions while ensuring a non-slip surface for maintenance and inspection teams.
With UV resistance, corrosion resistance, and lightweight properties, the FRP walkway grating is ideal for solar panel rooftops, where accessibility is critical for routine cleaning and inspections. The grating’s robust construction can handle heavy loads, making it suitable for both residential and commercial solar panel installations.
· Non-Slip Surface: Provides a safe and secure walking surface, even in wet or rainy conditions.
· UV Resistant: Built to endure prolonged exposure to sunlight without degrading.
· Lightweight & Strong: Easy to handle and install while providing superior strength.
· Corrosion-Resistant: Ideal for use in areas with high moisture or exposure to chemicals.
· Durable & Long-Lasting: Designed to last for years without maintenance, reducing replacement costs.
· Easy Installation: Quick to install with minimal tools required.
· Versatile: Suitable for all types of solar panel systems on commercial and residential rooftops.
| Legend |
Specification (mm) |
Mesh Size (mm) |
Thickness (mm) |
Bar Thickness (mm) |
Full Panel Size (mm) |
Weight (kg/㎡)
|
Open Rate (%) |
 |
38*38*15 | 38*38 | 15 | 6.0/5.0 |
1220*3660 1260*3660 |
7.0 | 75 |
| 38*38*25 | 38*38 | 25 | 6.5/5.0 |
1220*3660 1220*2440 |
12.3 | 68 | |
| 38*38*30 | 38*38 | 30 | 6.5/5.0 |
1220*3660 1220*4040 |
14.6 | 68 | |
| 38*38*38 | 38*38 | 38 | 7.0/5.0 |
1220*3660 1000*4040 |
19.5 | 65 | |
 |
40*40*25 | 40*40 | 25 | 7.0/5.0 |
1007*3007 |
12.3 | 67 |
| 40*40*30 | 40*40 | 30 | 7.0/5.0 |
1007*3007 |
14.6 | 67 | |
| 40*40*40 | 40*40 | 40 | 7.0/5.0 |
1247*3687 1007*3007 |
19.5 | 67 | |
 |
50*50*15 | 50*50 | 15 | 6.0/5.0 |
1220*3660 1220*2440 |
6 | 82 |
| 50*50*25 | 50*50 | 25 | 7.0/5.0 |
1220*3660 1220*2440 |
11 | 78 | |
| 50*50*50 | 50*50 | 50 | 7.5/5.0 |
1220*3660 1220*2440 |
22.5 | 75 | |
 |
19*19*25 |
19*19 38*38 |
25 | 6.5/5.0 |
1220*3660 1220*2440 |
16.8 | 30 |
| 19*19*30 |
19*19 38*38 |
30 | 6.5/5.0 |
1220*3660 1220*2440 |
19.1 | 30 | |
| 19*19*38 |
19*19 38*38 |
38 | 6.5/5.0 |
1220*3660 1220*2440 |
24 | 30 | |
 |
20*20*30 |
20*20 40*40 |
30 | 7.0/5.0 |
1007*3007 |
18.3 | 30 |
| 20*20*38 |
20*20 40*40 |
38 | 7.0/5.0 |
1247*3687 1007*3007 |
22.8 | 42 | |
| 20*20*40 |
20*20 40*40 |
40 | 7.0/5.0 |
1007*3007 |
23.7 | 42 |
To request a custom quote or learn more about the FRP Walkway Grating for Roof Solar Panels, please provide the following details:
1. Roof Type: What type of roofing system do you have? (e.g., flat, pitched, metal, etc.)
2. Solar Panel System Type: What kind of solar panel system are you using? (e.g., residential, commercial, hybrid systems)
3. Dimensions of Required Walkway: Please provide the approximate dimensions for the walkway.
4. Quantity: How many square meters of FRP walkway grating do you need?
5. Project Timeline: What is the expected project start date and installation timeframe?
6. Additional Requirements: Any custom design features, special load-bearing capacity, or unique specifications?
Our team will analyze your requirements and provide you with a tailored quote based on your needs.
Product Description FRP Gratings Walkway are widely used on rooftop for solar panel system maintenance. It refers to Solar rooftop walkways made from Fiberglass Reinforced Polymer (FRP), with the characteristics of light weight, high strength, corrosion resistance, fire resistance and anti-slip. FRP Walkway provides easy and safety access for regular panel inspection and cleaning, so as to improve the performance and longevity of your solar system Technical Parameters Product Name: FRP Grating Install Site: Rooftop Width: 300mm/400mm/450mm.. any other size Height: 20,25,30..Custom Size Length: as per your request Color: Yellow, Green, Gray, Blue, custom color Certification: ISO9001/CE/SGS/TUV Main Material: FRP Surface Treatment Gritted,Concave,Smooth
