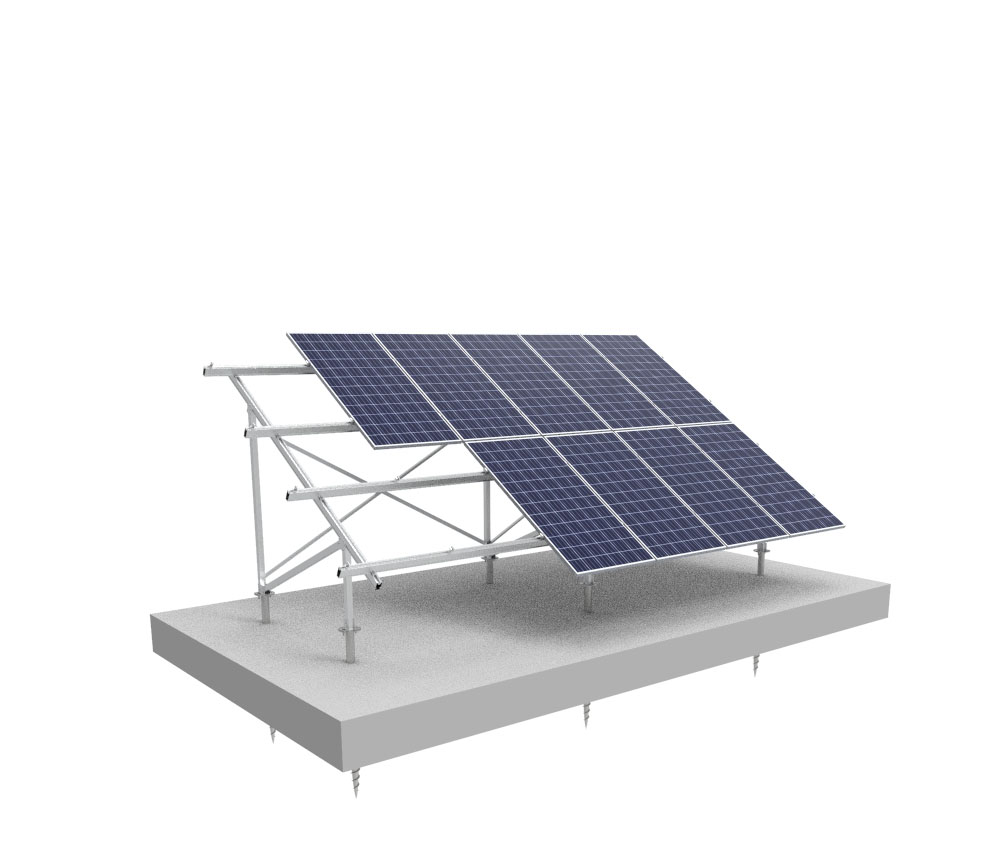

The N-Type Solar Ground Mounting Structure is an efficient, durable, and cost-effective solution for ground-mounted solar energy installations. With its high-quality aluminum alloy material, corrosion resistance, quick installation, and adaptability, this system is ideal for various solar projects worldwide.
Material:
Aluminum Alloy 6005-T5, Q235BSnow Load:
1.4KN/m²Wind Load:
60m/sStandard:
AS/NZS 1170, JIS C8955:2017/GB5009-2012Certification:
CE/SGSPanel Orientation:
Landscape/PortraitWarranty:
10 YearsService Life:
25 Years.Overview

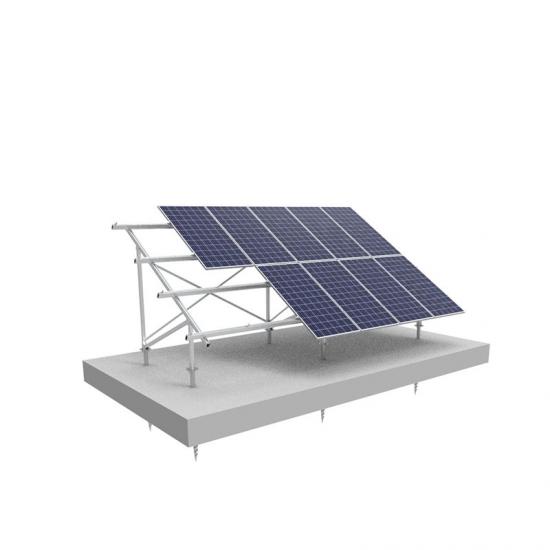

The N-Type Solar Ground Mounting Structure is a widely used solar mounting bracket system designed to provide a stable, durable, and efficient foundation for ground-mounted solar panel installations. This system is constructed using high-strength aluminum alloy, ensuring lightweight properties, excellent corrosion resistance, and long-term reliability.
Designed to accommodate various land conditions, the N-Type Solar Ground Mounting System is engineered with a customizable inclination angle, which is optimized based on latitude, longitude, and the slope of the terrain. Whether deployed on flat ground, sloped terrain, or uneven land, this system delivers maximum energy yield while ensuring long-term durability.
.Product Details
| Product Name: | Ground Mounting Solar Racking |
| Material: | Aluminum Alloy,Steel |
| Module Orientation: | Portrait or Landscape |
| Warranty: | 10 Years |
| Service Life: | 25 Years |
| Certification: | SGS, CE |
| Max Wind Load: | 60 m/s |
| Max Snow Load: | 1.4 KN/M² |
Key Features

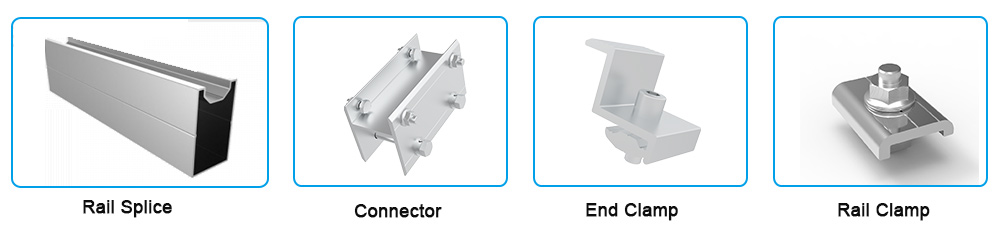

The N-Type Solar Ground Mounting Structure is designed for fast and easy installation, with pre-assembled components delivered directly from the factory. This significantly reduces on-site labor, assembly time, and installation complexity.
With its modular design, installers can quickly and efficiently set up the system without the need for complex tools or extensive groundwork preparation. The pre-assembled parts also ensure a secure and stable connection, improving overall system efficiency.
Manufactured using high-grade aluminum alloy, the N-Type mounting structure offers superior corrosion resistance, high strength, and lightweight properties. Unlike traditional steel mounting systems, aluminum structures do not require additional anti-corrosion coatings, making them cost-effective and long-lasting.
Additionally, its affordable pricing makes it a highly competitive choice in the market, delivering high durability at the best cost-performance ratio.
3. Customizable Design for Various Installations
One of the standout features of the N-Type Ground Mounting Structure is its customizable design. The system can be tailored to accommodate various solar panel configurations, land conditions, and installation requirements.
✔Supports different tilt angles to maximize solar energy capture.
✔Compatible with all types of framed and frameless solar panels.
✔Suitable for different soil types, including soft ground, rocky terrain, and sloped landscapes.
✔Can be installed using ground screws or concrete foundations, depending on site conditions.
4. Highly Flexible & Versatile
The N-Type Solar Ground Mounting System is highly adaptable and universally compatible with all standard PV modules, including:
✔Monocrystalline Solar Panels
✔Polycrystalline Solar Panels
✔Bifacial Solar Panels
This flexibility makes it suitable for large-scale utility projects, commercial solar farms, and small-scale installations alike.

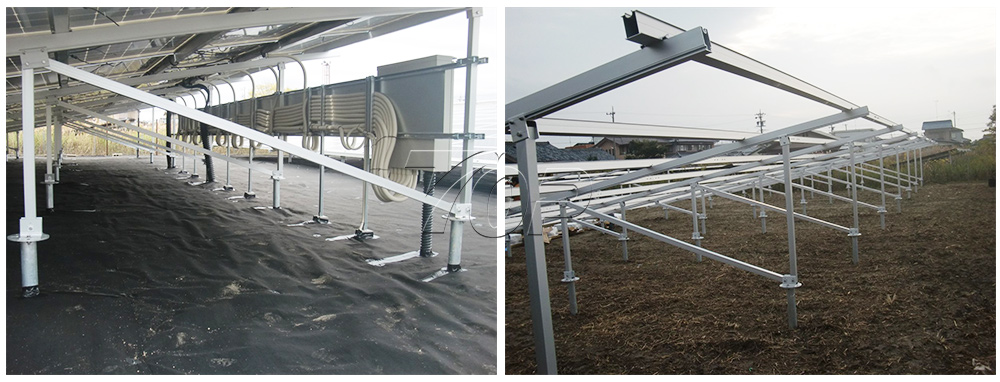

.Project Case (Solution)
A solar ground mounting system is composed of durable aluminum alloy solar accessories and hot-dip galvanized ground screws, ensuring excellent corrosion resistance and structural stability. This combination provides a lightweight yet robust solution, ideal for long-term outdoor use in various terrains and weather conditions.
