Tripod Solar Roof Mounting Bracket System Manufacturers

Tripod roof photovoltaic racking system is a kind of flat roof solar racking system solution.

Material:
Aluminum Alloy 6005-T5
Snow Load:
1.4KN/m²
Wind Load:
60m/s
Standard:
AS/NZS 1170, JIS C8955:2017/GB5009-2012
Panel Orientation:
Portrait / Landscape
Warranty:
10 Years
Service Life:
25 Years

Inquire now

Product Details

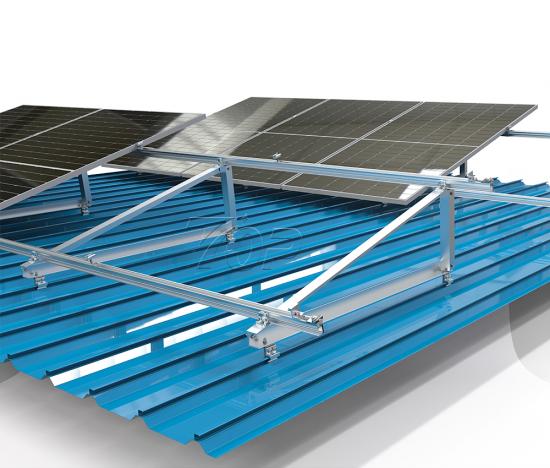

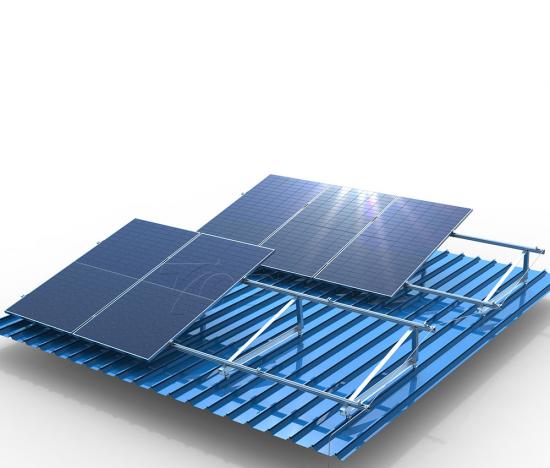

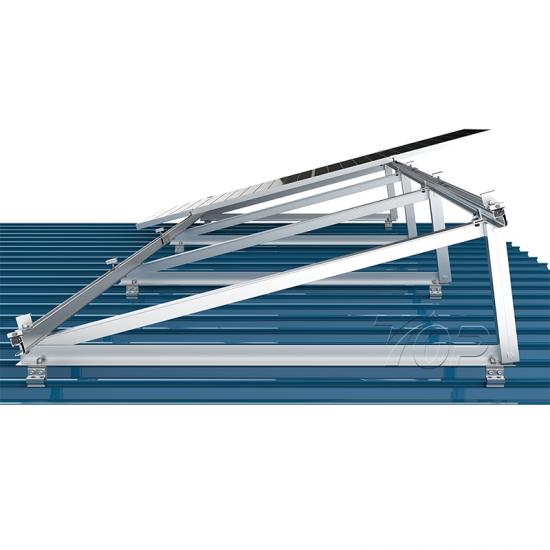

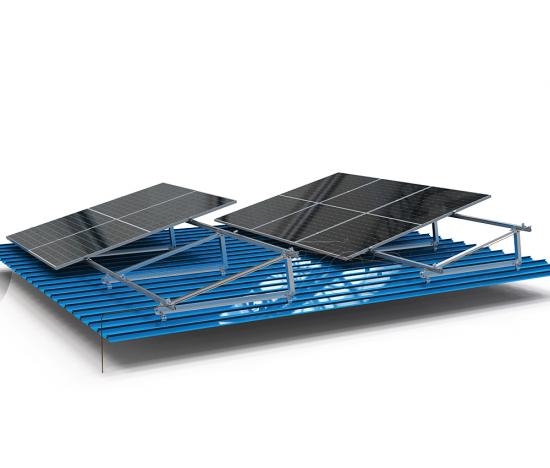

Tripod Solar Roof Mounting Bracket System

.Overview

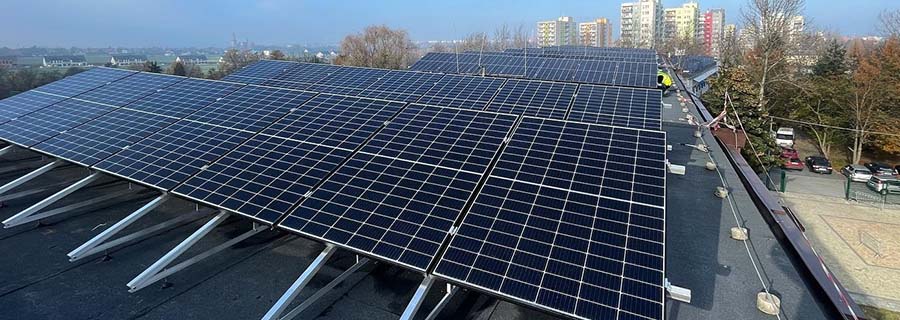

Tripod roof photovoltaic racking system is a kind of flat roof solar racking system solution, mainly applied to solar modules installed on flat roofs or a variety of common framed solar panels relative to the roof at a particular angle fixed on the color steel tile roof or cement roof.

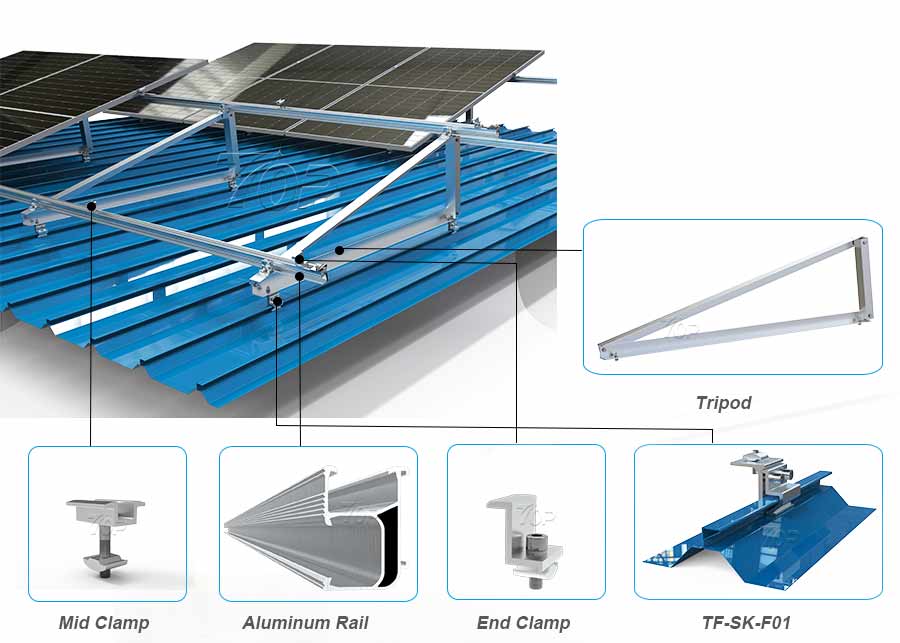

The PV mounting accessories are made of extruded high-strength aluminum alloy profiles, mainly composed of tripod, solar lock clamp, solar rail, solar rail splice, rail clamp, mid clamp and end clamp.

The mounting angle can be designed and processed according to the customer's requirements to meet the requirements of different countries or regions with different latitude and longitude solar modules, so as to ensure the best light angle.

.Product Details

Product Name:	Tripod Solar Rooftop Bracket
Material:	Aluminum Alloy
Module Orientation:	Portrait or Landscape
Max Wind Load:	60 m/s
Max Snow Load:	1.4 KN/M²
Warranty:	10 Years
Service Life:	25 Years
Certification:	SGS, CE
Application:	Metal Rooftop

The characteristics of tripod roof photovoltaic racking system:

1. Angle adjustment is possible.

2. Light weight, good strength and high corrosion resistance.

3. Strong compatibility.

4. Safe and reliable.

5. Easy installation.

.Installation Effect

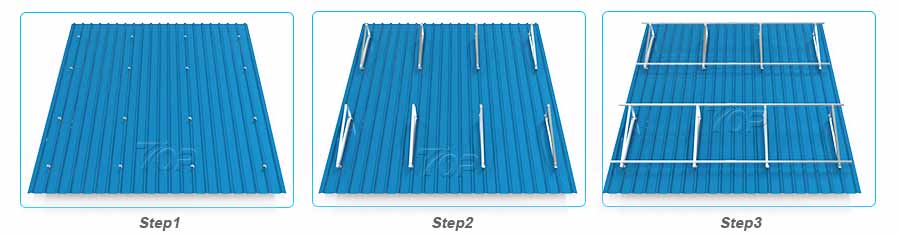

Step1: Install TF-SK-F01 solar lock clamp on the metal roof.

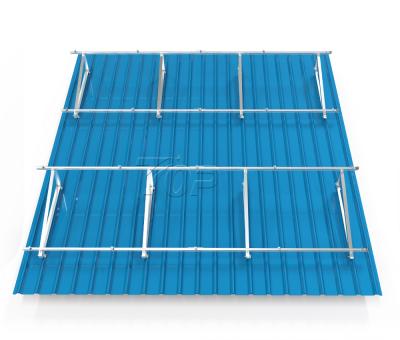

Step2: Install the tripod solar bracket on the TF-SK-F01 lock clamp by bolt.

Step3: Install solar aluminum alloy rail on tripod by rail clamp.

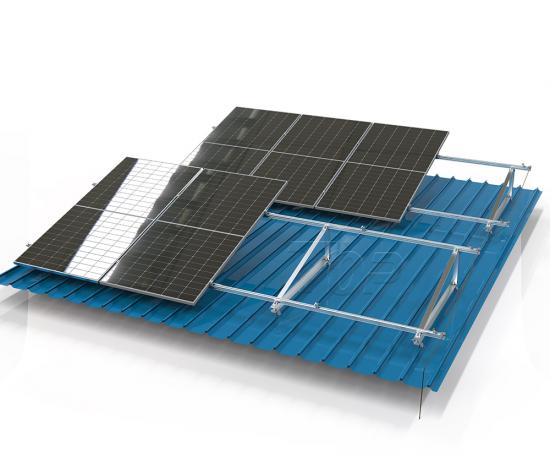

Step4~Step6: Install solar panel on the solar rail by solar module clamp(mid clamp and end clamp).
