The installation of solar farm mounting bracket is different from the conventional ground mounting bracket system.Solar Rack For Solar Farm
Material:
Aluminum Alloy 6005-T5, Q235B, Stainless Steel SUS304Snow Load:
1.4KN/m²Wind Load:
60m/sStandard:
AS/NZS 1170, JIS C8955:2017/GB5009-2012Certification:
CE/SGSPanel Orientation:
Landscape/PortraitWarranty:
10 YearsService Life:
25 Years
Solar Farm Mounting Bracket System Solution
.Overview
The installation of solar farm mounting bracket is different from the conventional ground mounting bracket system. The height of the bracket is higher than that of general ground mounting bracket. The purpose is not to affect the growth of crops, but also to fully contact the solar energy of the solar panel, so the design of the solar agriculture structure is strict.
Solar Farm mounting structure is made of aluminum alloy, Which has anti-corrosion, light weight, recyclable. The difficulty of installing the farm bracket is relatively high compared with other ground bracket, so the aluminum alloy material can give the greatest convenience in the installation.
.Product Details
| Product Name: | Solar Ground Mounting Bracket System for Agriculture |
| Material: | Aluminum Alloy, Galvanized Steel |
| Module Orientation: | Portrait or Landscape |
| Max Wind Load: | 60 m/s |
| Max Snow Load: | 1.4 KN/M² |
| Certification: | SGS ，CE |
| Warranty: | 10 Years |
| Service Life: | 25 Years |
| Solar Components: | ground screws, base, column, beam, rail, rail clamp, tripod bracket, mid clamp, end clamp and etc. |
The Characteristics of Top solar farm bracket:
.The solar mounting structure adopts 100% aluminum alloy Al6005-T5.
.easy to handle, transport and install, high pre-assembly solar bracket.
.The easy-to-maintain structure has a long service life and strong corrosion resistance.
.utilize farm spaces without effecting plant growth.
.Layer design ensure enough sunlight for plants.
.Saving up earth space especially for utility scale power plants.
.Installation Effect

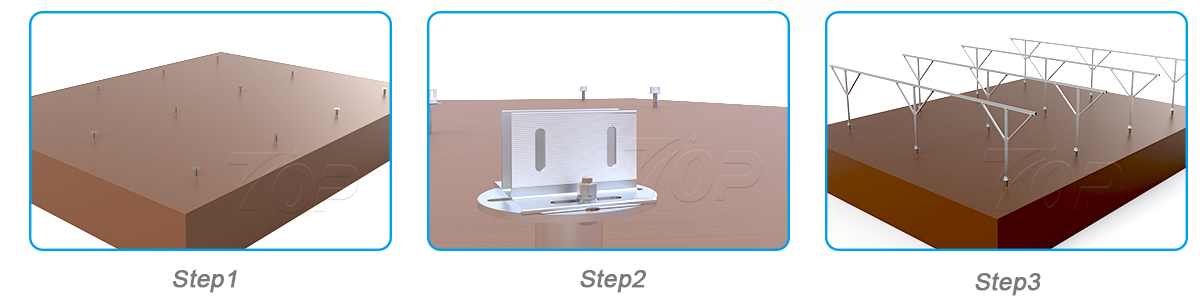

Step1: Installation the hot dipped galvanized ground screw on the farm.
Step2: The solar accessory base install on the ground screw flange by bolt. The solar base is used as a connection between ground screw pile and solar bracket.
Step3: Open the pre-assembly solar bracket, and that install it on the solar accessory base by bolt.

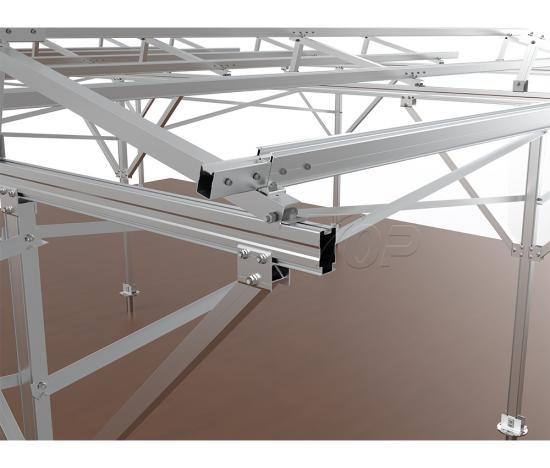

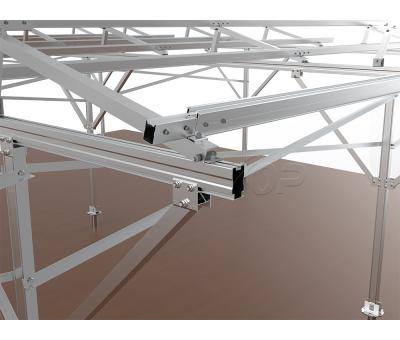

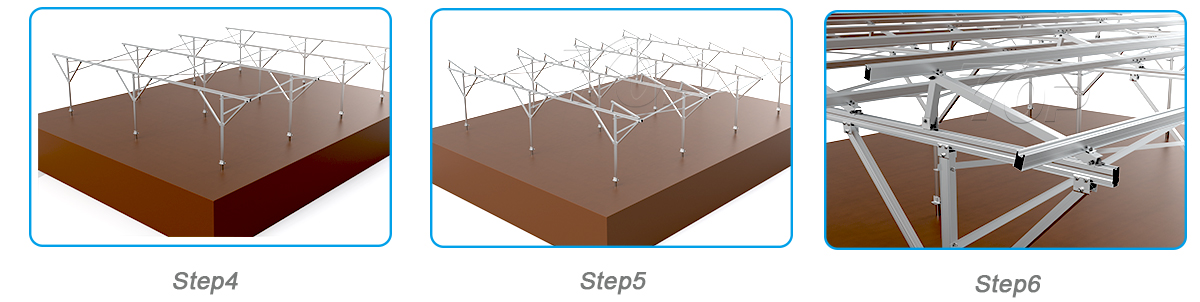

Step4: Install solar fixed bracket, enhance its stability.

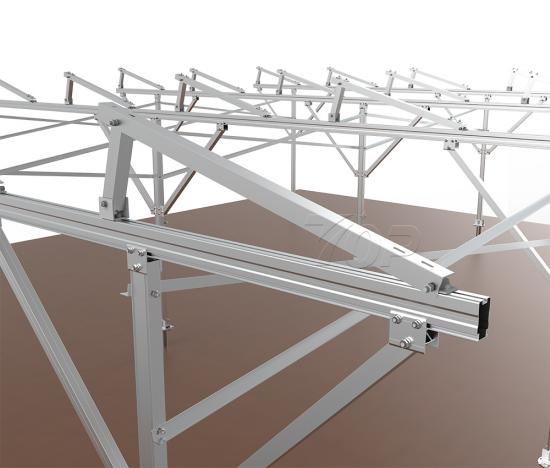

Step5: Install triangular frame on the pre-assembly bracket.

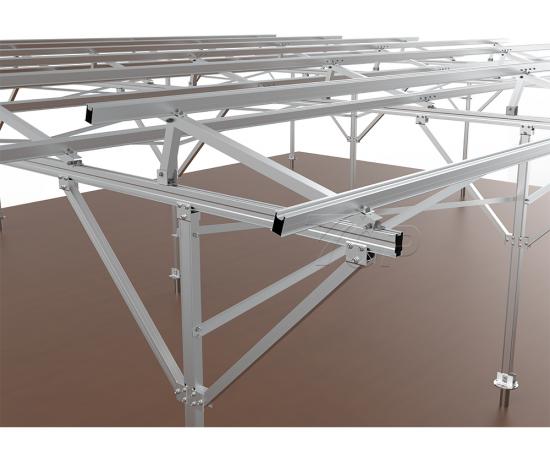

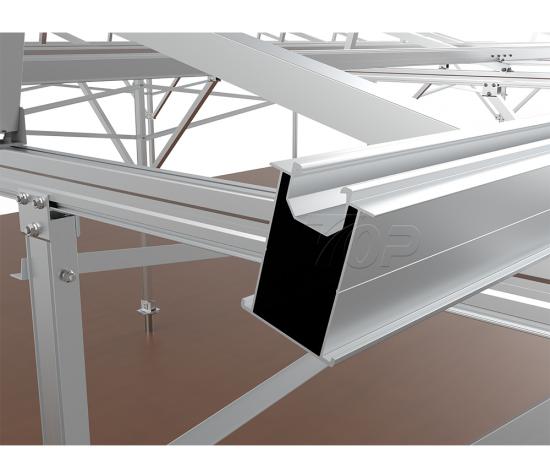

Step6: Solar rail install on the triangular frame by the rail clamp.

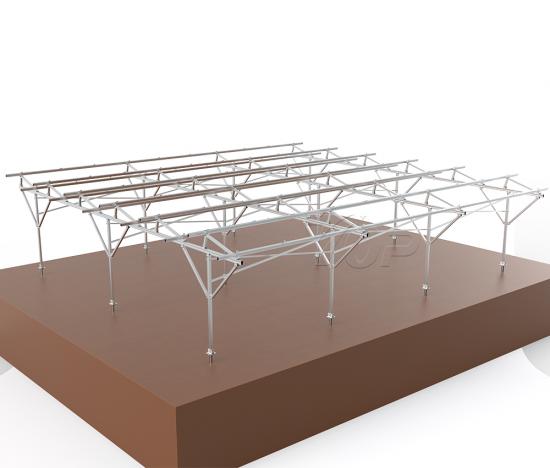

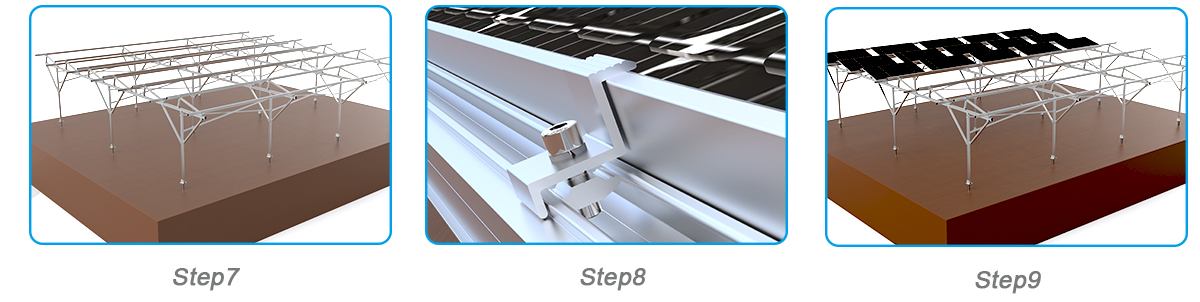

Step7: Complete the solar rail installation.
Step8: The solar panel is fixed on the solar rails by the module mid clamps and module end clamps.

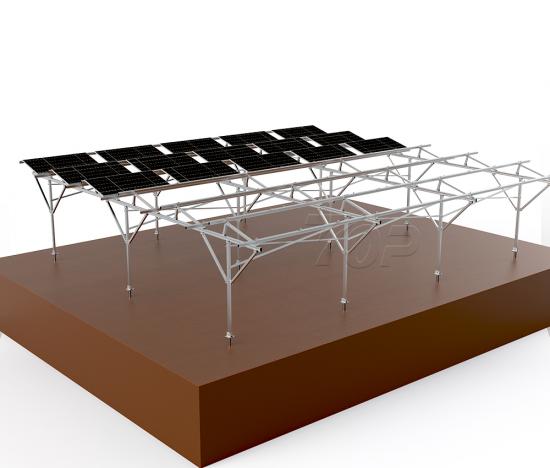

Step9: Complete the solar panel mounting system installation.

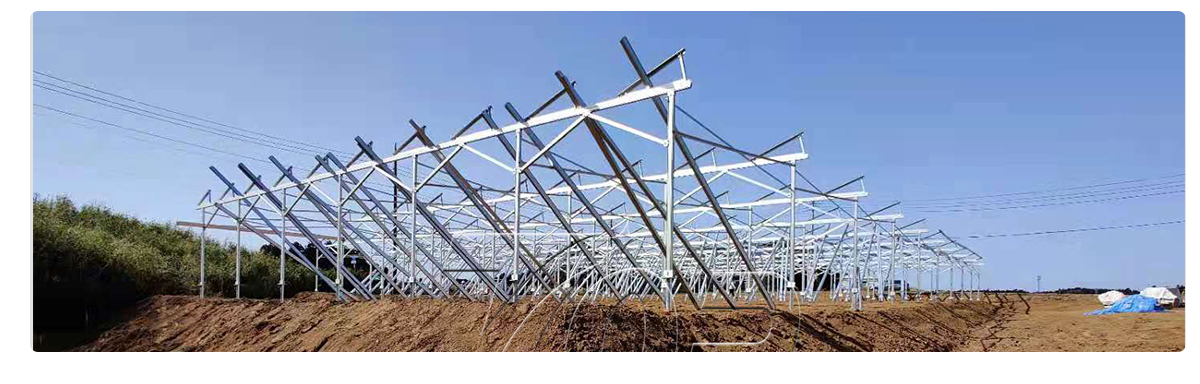

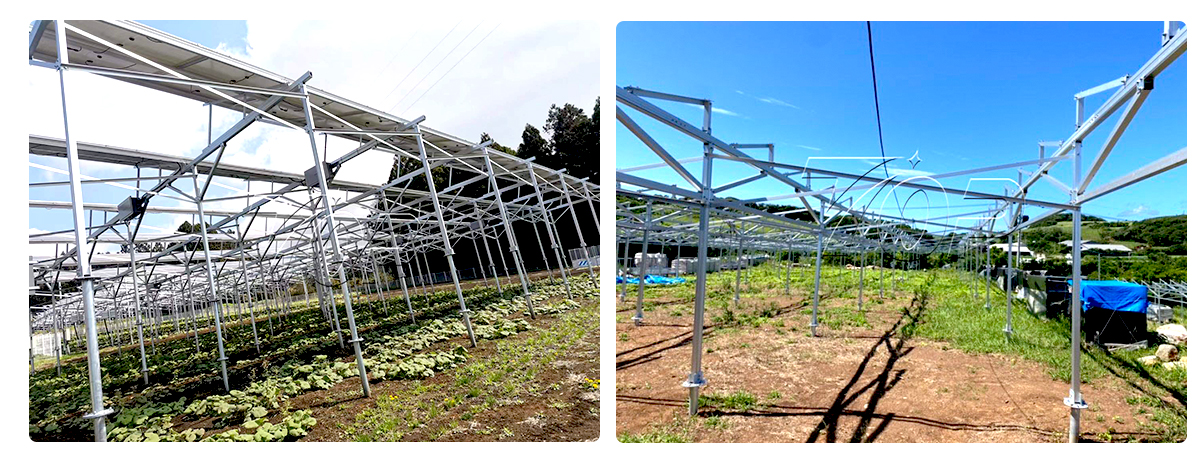

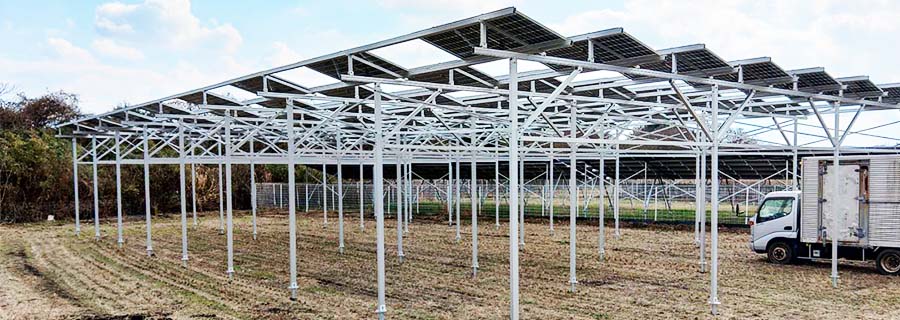

.Projects
