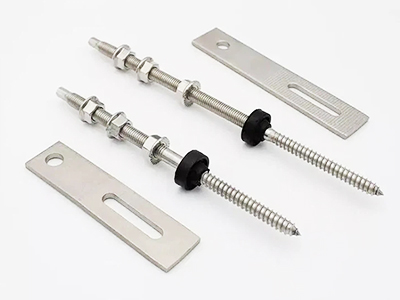

Reliable Hanger Bolt, Aluminum Plate, and bolt for Solar Panel Mounting

.Overview

TopFence`s durable solar mounting kit: hanger bolt, aluminum plate, and bolt is an efficient and reliable solution for solar panels mounting system on various roof types, including metal, wooden, and irregular surfaces. The main feature of this cost-effective solar hanger bolt , aluminum plate and bolt combination that is the use of bolts for the fixation between the aluminum sheet and the rails, more detailed installation details can be seen in the following product detail drawing show content.This combination provides a strong, secure, and flexible setup for both residential and commercial solar installations.

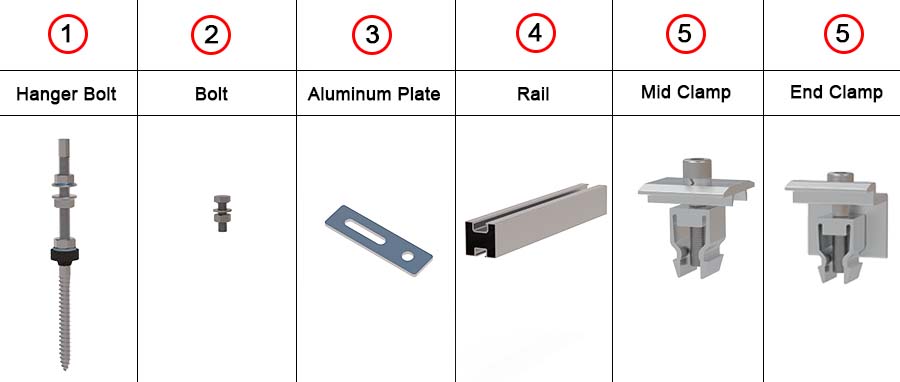

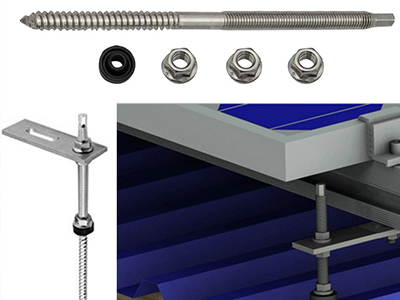

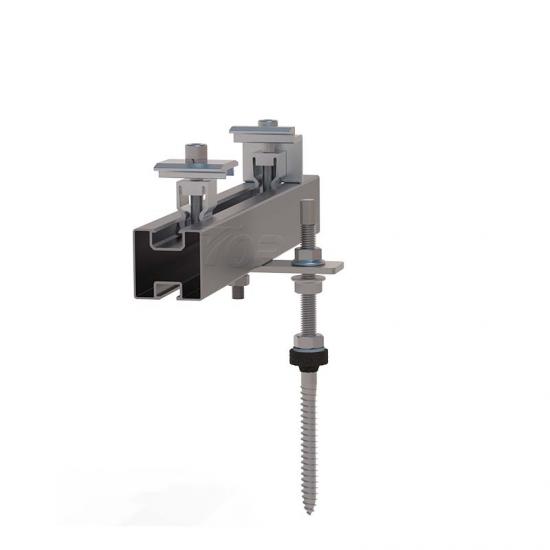

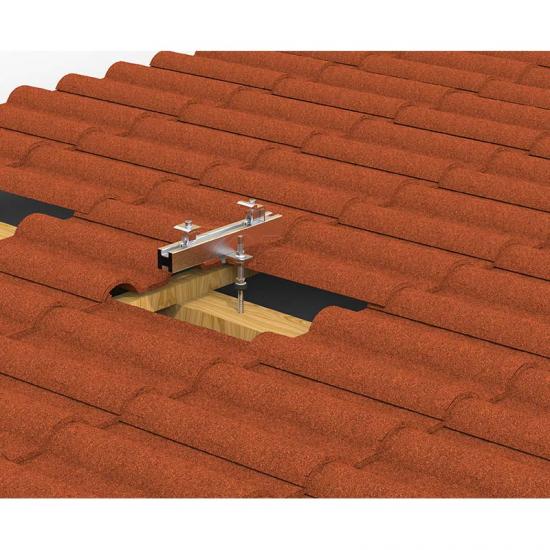

.Product Details Show

.Key Features

•

  Durable Material

  Constructed from high-quality stainless steel and aluminum, the components are corrosion-resistant, ensuring long-lasting performance even in harsh environmental conditions.
•

  Flexible Application

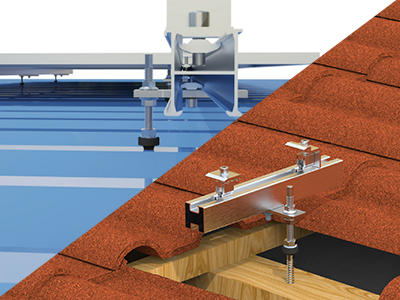

  Suitable for a wide range of roof profiles, including sloped, flat, or irregular designs, making it ideal for diverse installation scenarios.
•

  Secure and Stable Connection

  The hanger bolt anchors firmly into the roof substructure, while the aluminum plate and clamp ensure a tight grip on the solar panel frame, providing excellent stability.
•

  Waterproof Design

  The hanger bolt includes integrated sealing washers to prevent water leakage, maintaining the roof's integrity and ensuring a leak-proof installation.

•

  Easy to Adjust

  The combination offers adjustable positioning, allowing for precise alignment and efficient use of space on the mounting surface.

•

  Lightweight and Strong

  The aluminum plate is lightweight yet highly durable, reducing overall system weight without compromising structural integrity.

.Applications

· Residential Solar Systems:
Ideal for securely mounting panels on homes with wooden or metal roofs.

· Commercial and Industrial Projects:
Perfect for large-scale solar installations on factories, warehouses, or office buildings.

· Irregular Roofs:
Designed to adapt to unique or complex roof shapes with ease.

.Installation

•

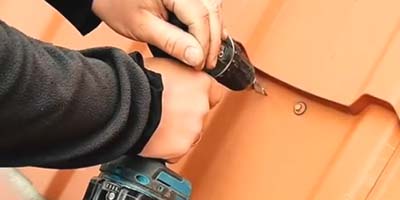

  Step01: Pre-punched holes in tile roof using an electric

•

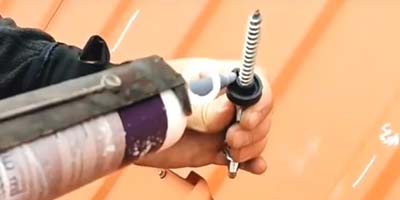

  Step02: Applying waterproofing adhesive to hanger bolts

•

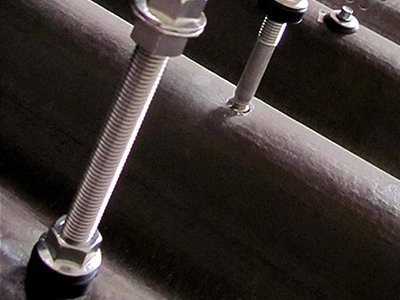

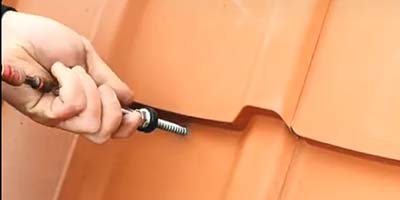

  Step03: Use an electric attach hanger bolts to the tile roof

•

  Step04: Install aluminum plate on the hangeer bolt

•

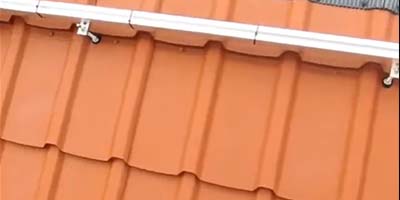

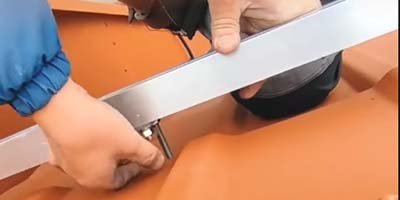

  Step05: install the rail on the aluminum plate with bolt clamp

•

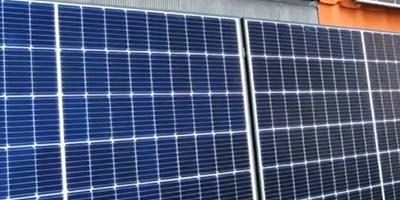

  Step06: Install solar panels on the aluminum rails with mid clamps and end clamps

•



.Advantages

· Fast and Easy Installation: Reduces labor time with minimal tools required.

· Enhanced Durability: Resists wear and tear, ensuring long-term use.

· Versatile Design: Accommodates different solar panel sizes and roof types.

· Cost-Effective: Combines premium quality with affordability for excellent value.

This solar panel fastening kit: hanger bolt, aluminum plate, and bolt is the perfect choice for installers seeking a dependable, flexible, and high-performance solar mounting solution.
