Ballasted Flat Roof PV Mounting System，No-penetration, wind-resistant, pre-assembled for fast installation with concrete blocks. Compatible with standard panels. This ballasted flat roof solar PV panel mounting system is the most cost-effective and simplest flat roof mounting solution on the market.
Material:
Aluminum & Stainless SteelSnow Load:
Up to 1.4KN/m2Wind Load:
Up to 216km/hStandard:
AS/NZS, JIS, CEand othersCertification:
CE/ISO9001Warranty:
10 yearsService Life:
20 yearsShipping Port:
Port of Xiamen.Overview

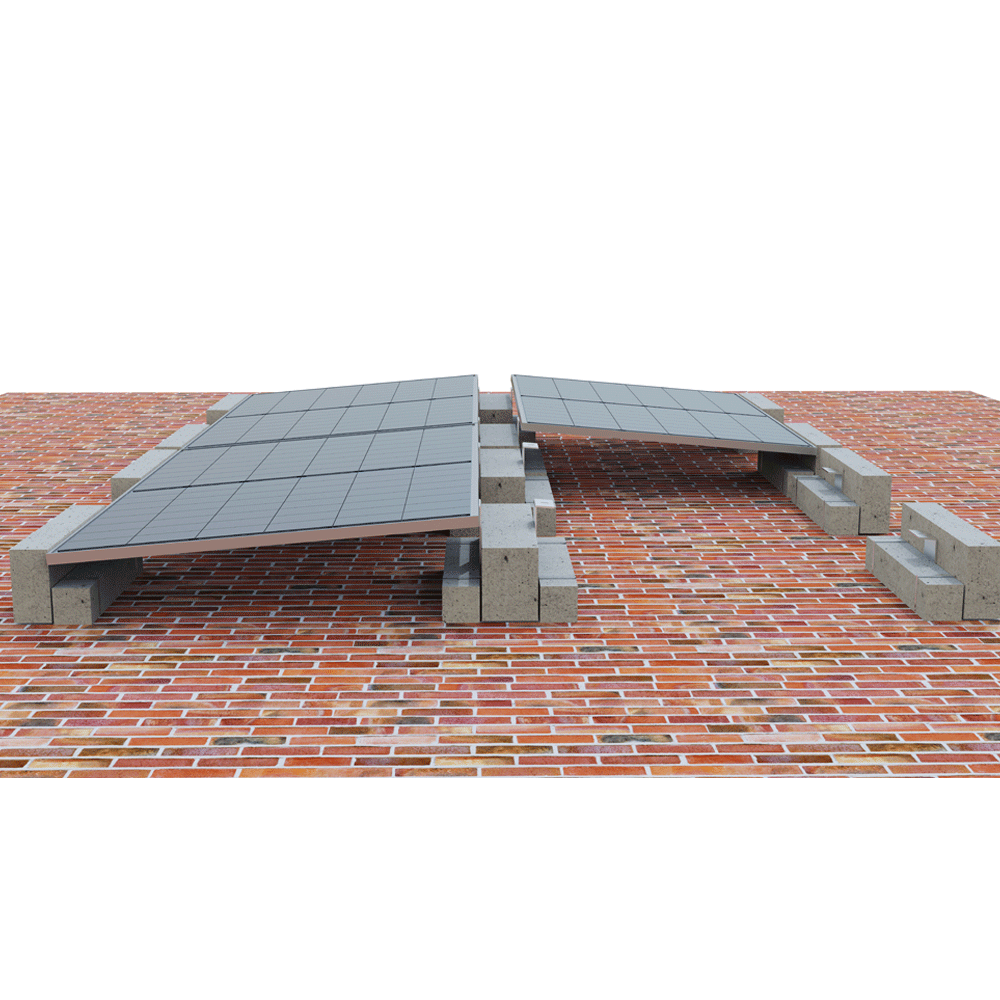

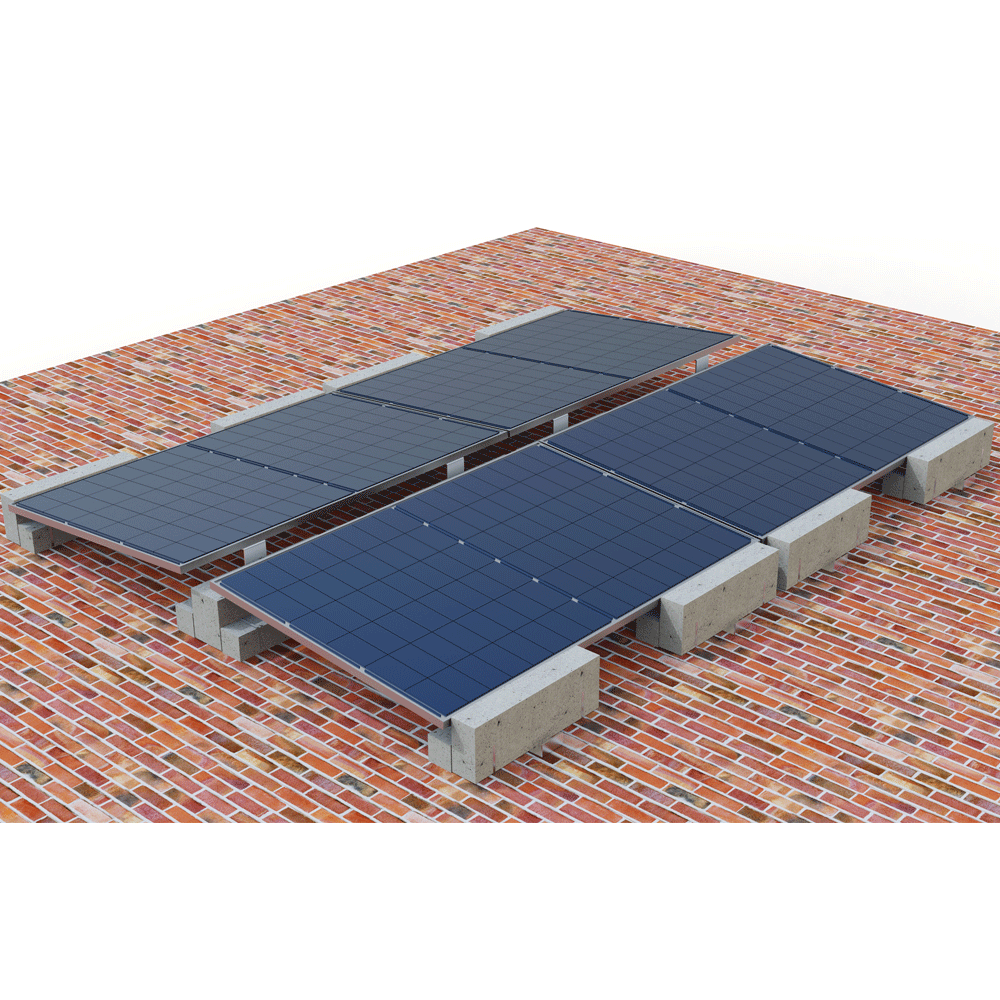

The Ballasted Flat Roof Solar PV Mounting System is a cost-effective and efficient solution for installing solar panels on flat roofs. Designed to non-penetrations, this system is directly fixed onto concrete blocks, ensuring a secure and stable foundation without compromising the waterproof layer. Featuring components, including front leg, rear let, and hex head bolt, this mounting system significantly reduces installation time and labor costs. Engineered for durability, it effectively withstands wind loads while maintaining structural integrity. Compatible with standard framed solar modules, this system offers a simple and reliable installation process, making it an ideal choice for flat roof applications.
.Product Specifications
| Install Site | Ballasted Tilt Solution |
| Max Wind Speed | ≤60m/s |
| Snow Load | ≤1.4KN/M2 |
| Tilt Angle | Adjustable |
| Applicable Module | Framed or frameless |
| Module Orientation | Landscape, portrait |
| Standards | AS/NZS 1170, ASCE 7-10, JIS2017 |
| Material | AL6005-T5, SUS304 |
| Anti-corrosive | Anodized |
| Color | Silver |
| Warranty | 12 years |
Product Features
Minimal Components Required – Only front /rear leg, hex head bolt and concrete blocks are needed, reducing installation complexity.

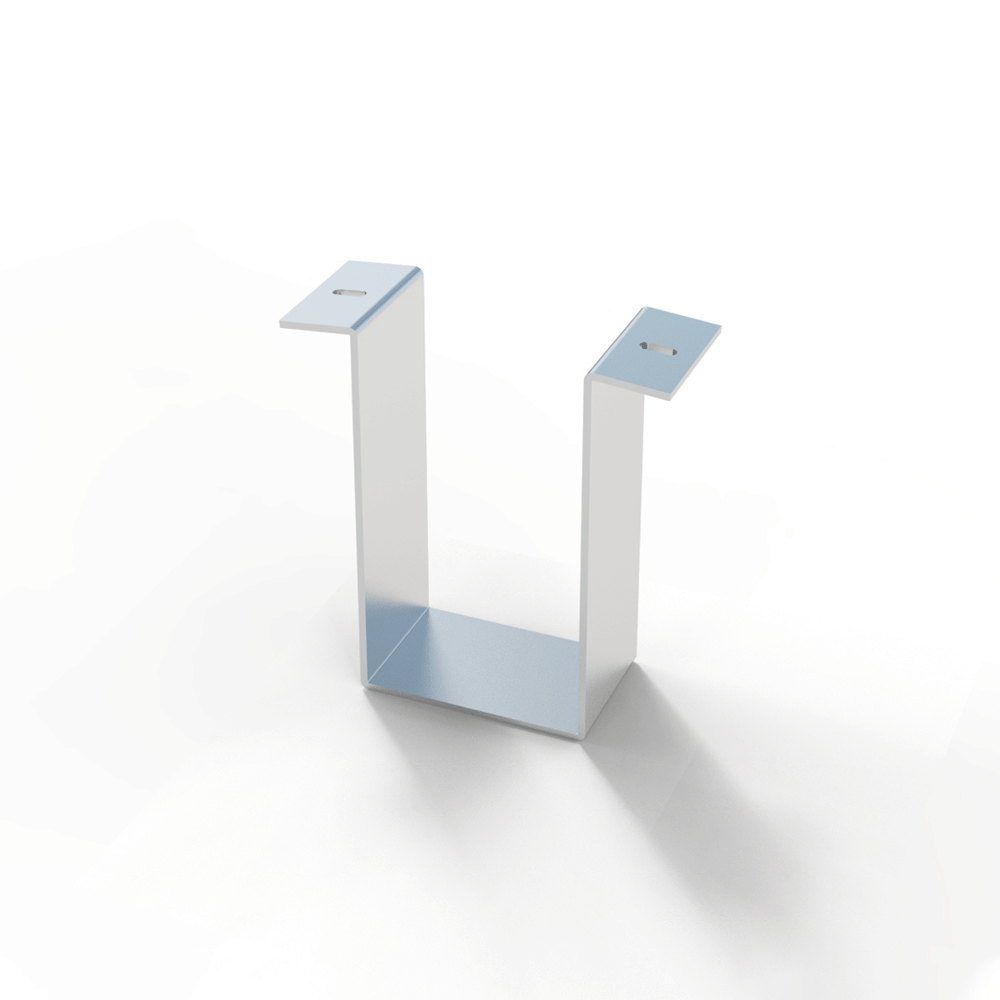

Quick and Easy Installation – Solar panels are secured using nuts through pre-drilled holes in the U-joint connector and solar module frame.
Versatile and Compatible – Works with standard framed modules and adapts to various flat roof installations.
.FAQ
1. Does the ballasted mounting system require roof penetration?
No, this system is designed to be secured with concrete blocks, eliminating the need for roof penetrations and preserving the waterproof layer.
2. What components are needed for installation?
The system requires only U-joint connectors and concrete blocks, making it one of the simplest flat roof mounting solutions.
3. How are the solar panels secured to the mounting system?
Panels are fastened using nuts through the U-joint connector holes and the module frame holes, ensuring a secure and stable installation.
4. Is the system suitable for high-wind areas?
Yes, the mounting structure is designed to minimize wind impact, providing stability even in windy environments.
5. Can this system be used with all types of solar panels?
The system is compatible with standard framed solar modules, making it adaptable for most solar panel installations.
