Understanding Mid Clamps vs. End Clamps for Solar Panels

When it comes to installing solar panels, every component plays a crucial role in ensuring the system's efficiency, durability, and safety. Among these components, solar panel clamps are often overlooked, yet they are essential for securing solar panels to the mounting structure. Specifically, mid clamps and end clamps serve distinct purposes in the installation process. Understanding the differences between these two types of clamps can help you make informed decisions, ensuring a robust and long-lasting solar panel system.

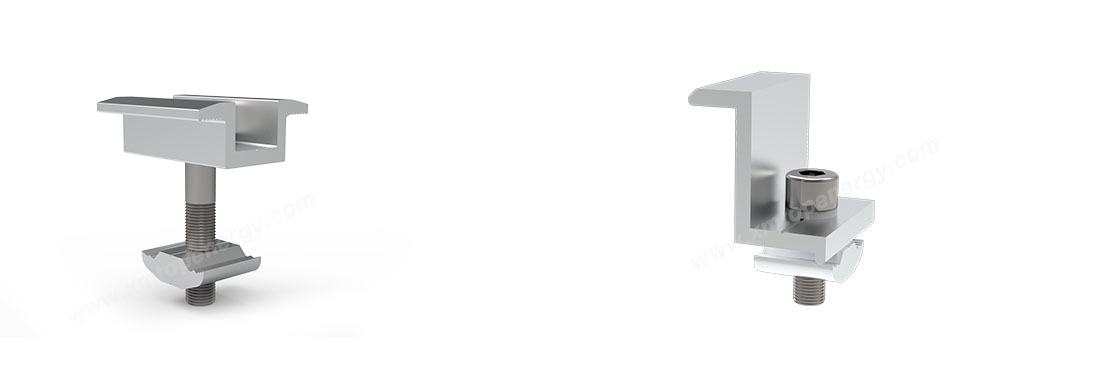

What Are Mid Clamps and End Clamps?

Mid Clamps are used to connect two adjacent solar panels along the same row. They are typically placed between the panels, holding them firmly in place while maintaining the necessary spacing for thermal expansion and contraction. Mid clamps are designed to provide a secure grip without damaging the panels, ensuring that they remain aligned and stable even under harsh weather conditions.

End Clamps, on the other hand, are used at the ends of each row of solar panels. They secure the last panel in the row to the mounting structure, preventing any movement that could lead to misalignment or damage. End clamps are crucial for maintaining the structural integrity of the entire array, as they bear the brunt of wind and other environmental forces.

Key Differences Between Mid Clamps and End Clamps

Positioning:

Mid clamps are positioned between panels.

End clamps are positioned at the ends of each row.

Function:

Mid clamps connect adjacent panels, ensuring they remain aligned and spaced correctly.

End clamps secure the outer panels to the pv mounting structure, providing stability and preventing movement.

Design:

Mid clamps are often symmetrical, designed to grip two panels simultaneously.

End clamps are usually asymmetrical, designed to grip one panel and the mounting rail.

Load Distribution:

Mid clamps distribute the load evenly between two panels.

End clamps handle the load from a single panel and transfer it to the mounting structure.

Why Choosing the Right Clamp Matters？

Selecting the appropriate clamps for your solar panel installation is not just about securing the panels; it’s about ensuring the longevity and efficiency of your solar energy system. Using the wrong type of clamp can lead to:

Panel Misalignment: Improper clamping can cause panels to shift, reducing their efficiency and potentially causing damage.

Structural Weakness: Inadequate clamping can compromise the structural integrity of the entire array, making it vulnerable to wind, snow, and other environmental stresses.

Warranty Issues: Many solar panel manufacturers require specific types of clamps to maintain the warranty. Using incorrect clamps can void this warranty.

Conclusion

Understanding the differences between mid clamps and end clamps is essential for anyone involved in solar panel installation. These small but critical components ensure that your solar panels remain securely in place, maximizing their efficiency and lifespan. Whether you're a DIY enthusiast or a professional installer, knowing when and how to use mid clamps and end clamps can make a significant difference in the performance of your solar energy system.

By paying attention to these details, you can ensure that your solar panel installation is not only efficient but also durable and safe, providing you with clean, renewable energy for years to come.
